1. Compact structure, small size and light weight
2. Easy to install and use
3. Filtration precision 0.5~200um.

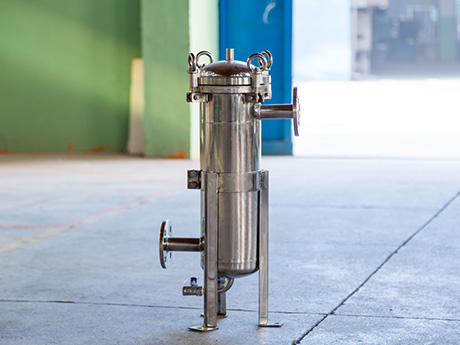

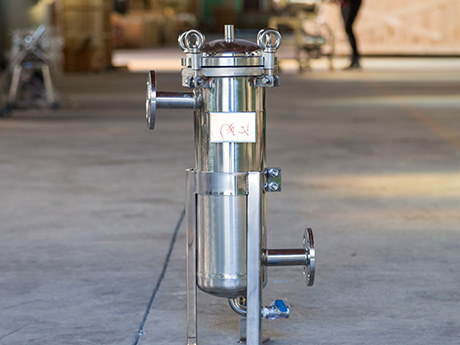

Bag filter housing is widely used in chemical industry, pharmacy, automobile industry, food industry (such as wine and oil) and so on.
Bag filter housings are an easy to use and cost effective product for the filtration of liquids containing higher concentrations of coarse solids. They are particularly beneficial when handling batches of various liquids. It can be used as end-filtration or for the polishing of liquids with extremely low concentrations of solids.

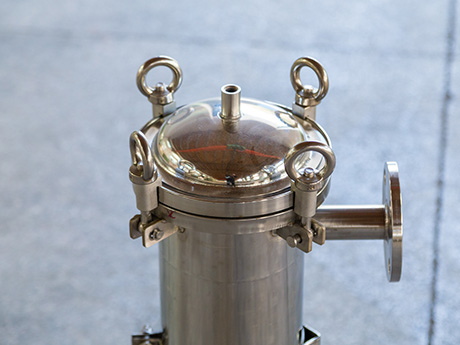

The bag filter consists of housing, supporting basket and filter bag. It is made S.S. and with inside S.S. mesh which is the medium to intercept solid particles. The liquid goes into the housing from the inlet by pump and then is evenly filtered by the filter bag under the pressure from the pump. The impurities will be trapped in the filter bag and clear liquid shall be out from outlet. The whole filtration process is done.
Filter bag is easy to change and can be reused after washing.
Click to expand to view the data
| Model | Filtering Area（㎡） | Max Flow（t/h） | Working pressure（Mpa） | Volume（L） | Inlet/Outlet Connection | Housing Diameter(B.mm) | Total Heigh（H.mm） |
Housing Heisght(H1.mm) |
| 01# | 0.25 | 20 | 0.5 | 8 | DN40 | 220 | 800 | 568 |
| 02# | 0.5 | 40 | 0.5 | 17 | DN50 | 220 | 1200 | 960 |
| 04# | 0.2 | 10 | 0.5 | 4 | DN32 | 159 | 650 | 568 |
1000 engineers will always provide service for your project
In 2 hours, contact and give clear solutions
Provide the required information, product, site planning drawings, etc. timely
Slove the problem completely,inlcuding product installation,tech training service,spare parts,on-site maintenance, etc.
1. Compact structure
2. Easy to install and use
Multi Bag Filter Housing
1.High efficiency and no environmental pollution.
2.Automatic fine filtration
Candle Filter
1.Fully sealed filtration, no leakage, no environmental pollution
2.Filter without filter paper, filter cloth, filter cost is very low

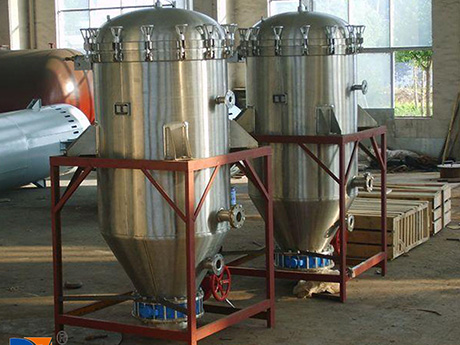

Leaf Filter
1.Advanced structure, no deformation, easy to clean
2.Easy to operate and flexible to move

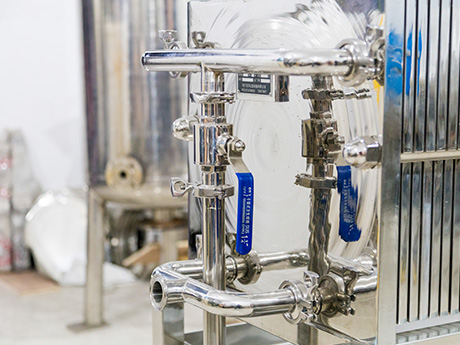

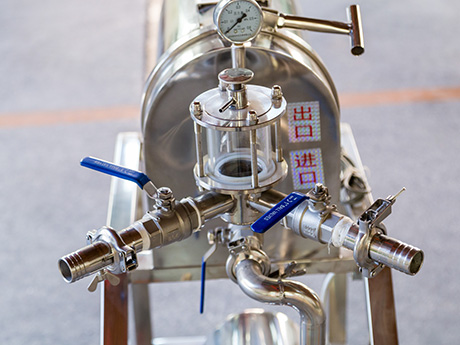

S.S. Multi-layer Filter
1.High filtration precision, uniform pore size filter.
2.Small filtration resistance, flux, long service life.

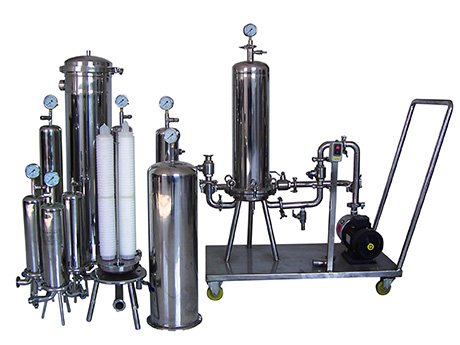

Cartridge Filter
1.Higher automation, larger capacity, self-cleaning and sewage discharge
2.Continuous water supply, and wide application range

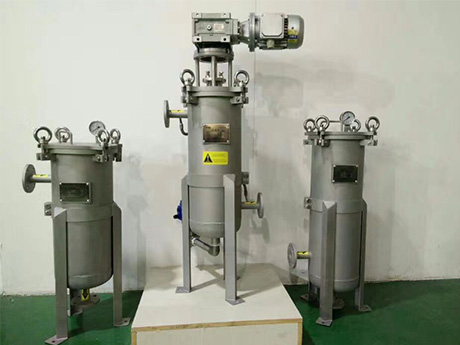

Automatic Self-clean Filter
