1. High closing pressure (20-25MPa) can avoid leakage effectively.
2. Hydraulic powerpack uses the famous motor brand, it is steady in operation.
3. Simple operation, Wide application
Slurry dewatering for wastewater treatment, Foodstuff, Chemicals, Mining, Medicine, Ceramic slurry, etc

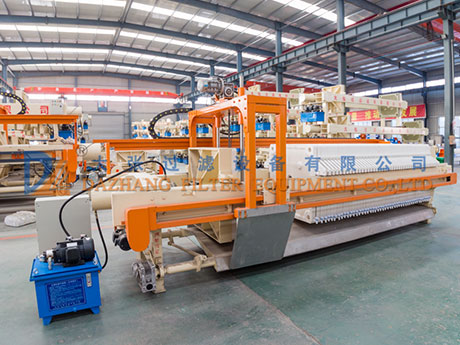

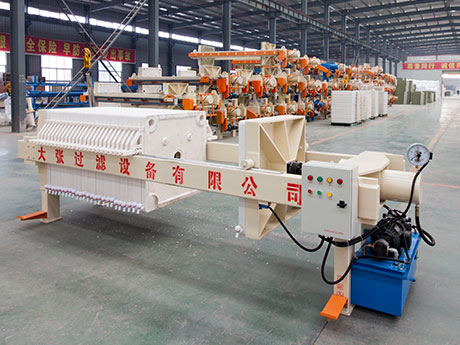

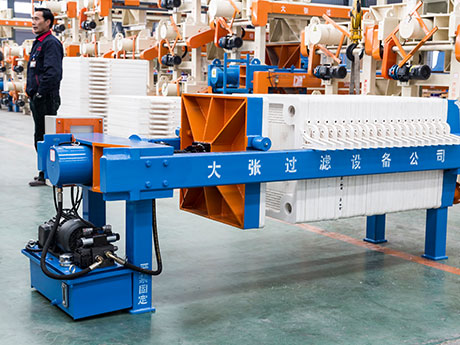

The hydraulic filter press is electrical hydraulic closing and manual cake discharging. A motor-driven hydraulic closing system is the best method than others, because of the high clamping force. So all big machine belongs to hydraulic type. It has more advantages: easy operation, stable working, best-squeezing performance, automatic pressure keeping, etc. Additionally, compared with an air-driven hydraulic system, it has much lower noise.
The hydraulic filter press adopts a hydraulic system to open and close the filter plates, and it can bear higher filtering pressure than other closing types.
1)Feeding pressure 0.6-2Mpa, Hydraulic clamping, automatic maintaining pressure
2)Frame made of high-quality Q345 carbon steel with sandblasting processing, and it can be coated with SS304 or 316L for meeting high requirements.

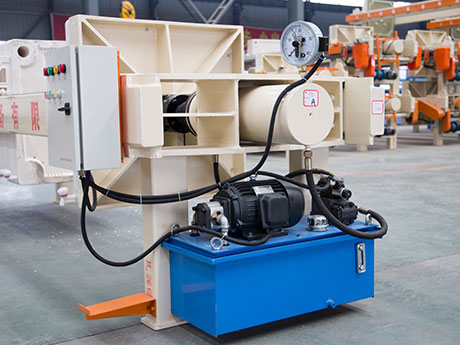

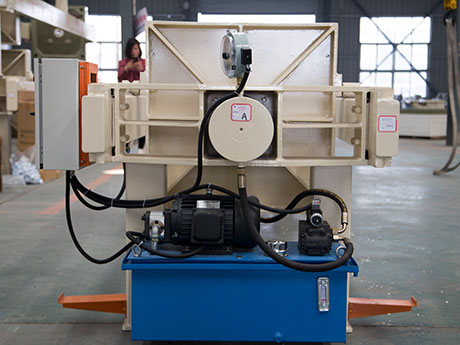

3)Hydraulic station equipped with famous brand motor, the power voltage can be customized as per customer's requirement, closing pressure can reach 20-25MPa.
4)Schneider Electric components, which bring longer service life.
5)Customized models and products are available
Click to expand to view the data
| Model | Filter press(m2) | Plate size(mm) | Cake thickness(mm) | Filter chamber volume(L) | Plate NO(pcs) | Filtration pressure(Mpa) | Motor power(Kw) | Weight(Kg) | Dimensions L*W*H(mm) | Foundation Size(mm) | ||||
| L | B | D | H | |||||||||||
| X_M^AY50/1000−30U_K^B | 50 | 1000*1000 | 30 | 736 | 28 | ≥0.6 | 4 | 4072 | 4040*1500*1400 | 3120 | 780 | 1400 | 870 | |
| X_M^AY60/1000−30U_K^B | 60 | 889 | 34 | 4468 | 4460*1500*1400 | 3480 | ||||||||
| X_M^AY70/1000−30U_K^B | 70 | 1011 | 40 | 4863 | 4760*1500*1400 | 3840 | ||||||||
| X_M^AY80/1000−30U_K^B | 80 | 1193 | 46 | 5259 | 5120*1500*1400 | 4200 | ||||||||
| X_M^AY100/1000−30U_K^B | 100 | 1473 | 57 | 5985 | 5800*1500*1400 | 4860 | ||||||||
| X_M^AY120/1000−30U_K^B | 120 | 1777 | 69 | 6776 | 6500*1500*1400 | 5580 | ||||||||
| X_M^AY100/1000−30U_K^B | 100 | 1250*1250 | 30 | 1468 | 36 | ≥0.6 | 4 | 6728 | 5020*1770*1600 | 3970 | 850 | 1770 | 995 | |
| X_M^AY120/1250−30U_K^B | 120 | 1746 | 43 | 7512 | 5470*1770*1600 | 4430 | ||||||||
| X_M^AY140/1250−30U_K^B | 140 | 2063 | 51 | 8641 | 5990*1770*1600 | 4950 | ||||||||
| X_M^AY160/1250−30U_K^B | 160 | 2341 | 58 | 8205 | 6450*1770*1600 | 5400 | ||||||||
| X_M^AY180/1250−30U_K^B | 180 | 2619 | 65 | 10044 | 6905*1770*1600 | 5860 | ||||||||
| X_M^AY200/1250−30U_K^B | 200 | 2896 | 72 | 10851 | 7360*1770*1600 | 6300 | ||||||||
| X_M^AY220/1250−30U_K^B | 220 | 3214 | 80 | 11765 | 7880*1770*1600 | 6830 | ||||||||
| X_M^AY250/1250−30U_K^B | 250 | 3650 | 91 | 12834 | 8600*1770*1600 | 7550 | ||||||||
| X_M^AY200/1500−35U_K^B | 200 | 1500*1500 | 35 | 3498 | 49 | ≥0.6 | 11 | 19530 | 6400*2200*1900 | 5250 | 1170 | 1900 | 1070 | |
| X_M^AY250/1500−35U_K^B | 250 | 4375 | 61 | 22478 | 7225*2200*1900 | 6090 | ||||||||
| X_M^AY300/1500−35U_K^B | 300 | 5235 | 74 | 25526 | 8130*2200*1900 | 6990 | ||||||||
| X_M^AY350/1500−35U_K^B | 350 | 6125 | 86 | 28720 | 8940*2200*1900 | 7840 | ||||||||
| X_M^AY400/1500−35U_K^B | 400 | 6985 | 99 | 32074 | 9880*2200*1900 | 8750 | ||||||||
| X_M^AY450/1500−35U_K^B | 450 | 7875 | 111 | 35086 | 10690*2200*1900 | 9590 | ||||||||
| X_M^AY500/1500−35U_K^B | 500 | 8735 | 123 | 38106 | 11560*2200*1900 | 10430 | ||||||||
1000 engineers will always provide service for your project
In 2 hours, contact and give clear solutions
Provide the required information, product, site planning drawings, etc. timely
Slove the problem completely,inlcuding product installation,tech training service,spare parts,on-site maintenance, etc.
1.Short filtration cycle and high efficiency
2. It has higher cost performance, lower running cost

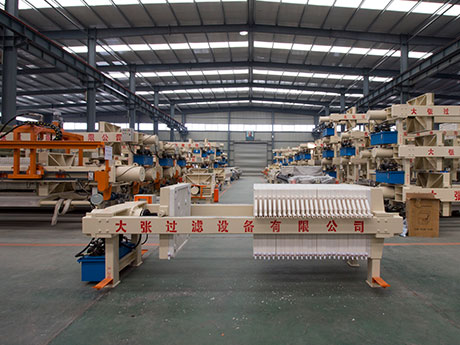

Chamber Filter Press
1.Lower cake moisture compared with other series.
2.High pressure squeezing 1.6MPa is able to get more liquid extraction and higher cake dryness.

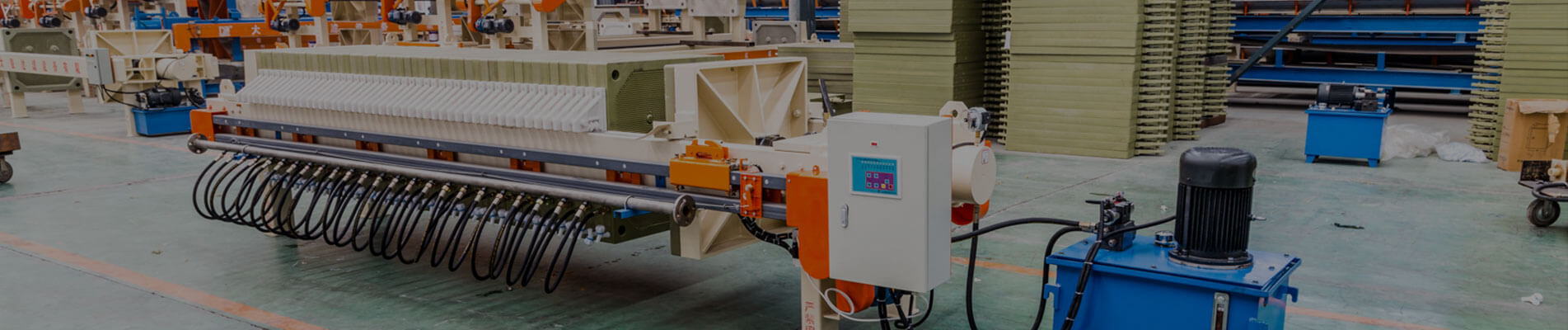

Membrane Filter Press
1.Resist high temperature and high pressure.
2.Meet the special standards in food and pharmacy industries

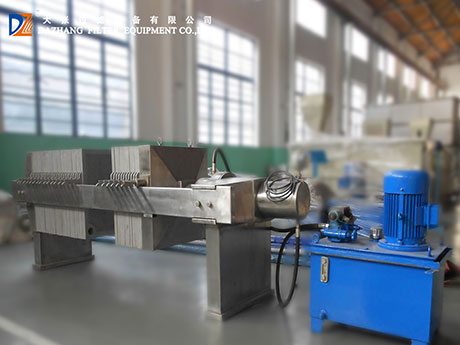

Stainless Steel Filter Press
1.It can be used for ultra-filtration by using the filter paper, paperboard.
2.Various filtering medium for options: filter clothes or filter paper, paperboard
Plate And Frame Filter Press
1.Siemens PLC control and automatic cake discharging saves labor.
2.Higher dewatering and filtering efficiency.
Auto Filter Press
1.Need no power consumption.
2.Need no maintenance.

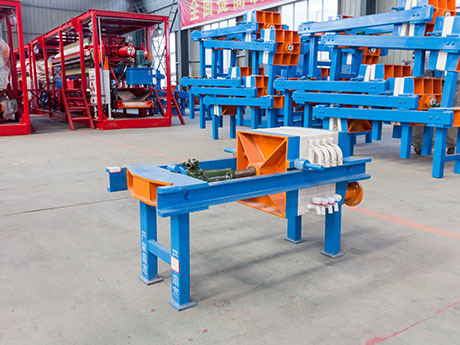

Manual filter press
1.Simple and economical filtration through maximum flexibility and mobility
2.Compact and all in one design for trouble-free and reliable operation

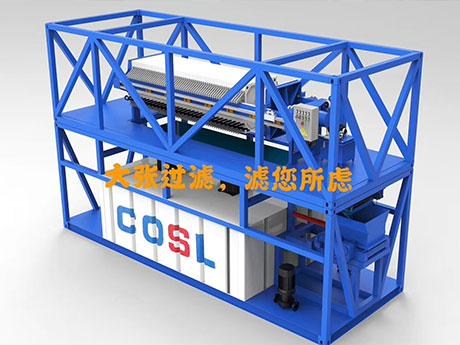

Mobile Filter Press
