1.Siemens PLC control and automatic cake discharging saves labor.
2.Higher dewatering and filtering efficiency.
3.Simple operation, wide application
Slurry dewatering for wastewater treatment, Foodstuff, Chemicals, Mining, Medicine, Ceramic slurry, etc

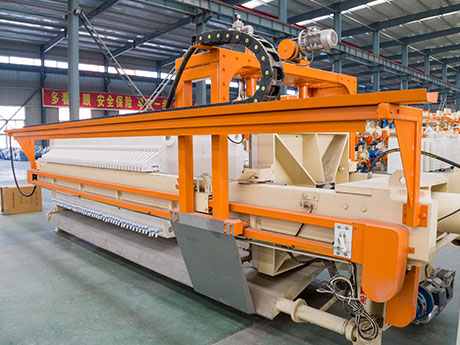

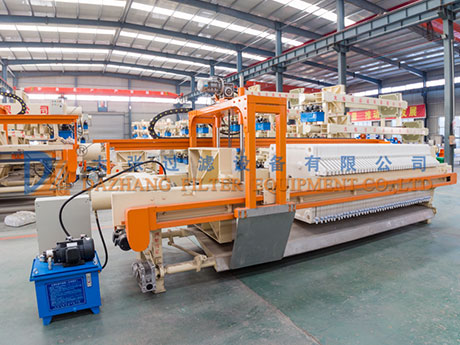

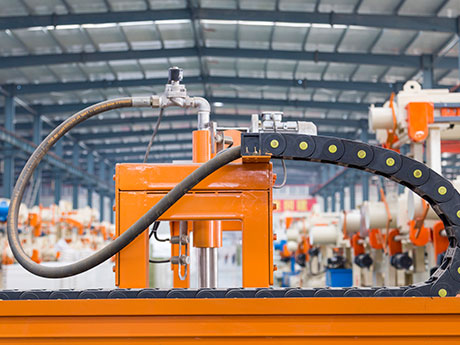

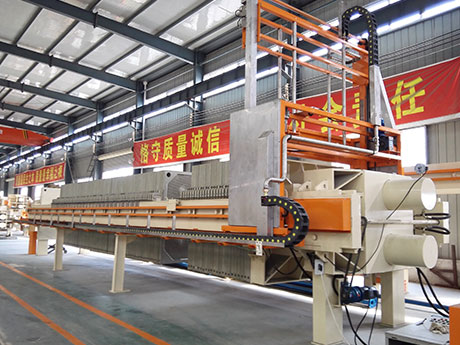

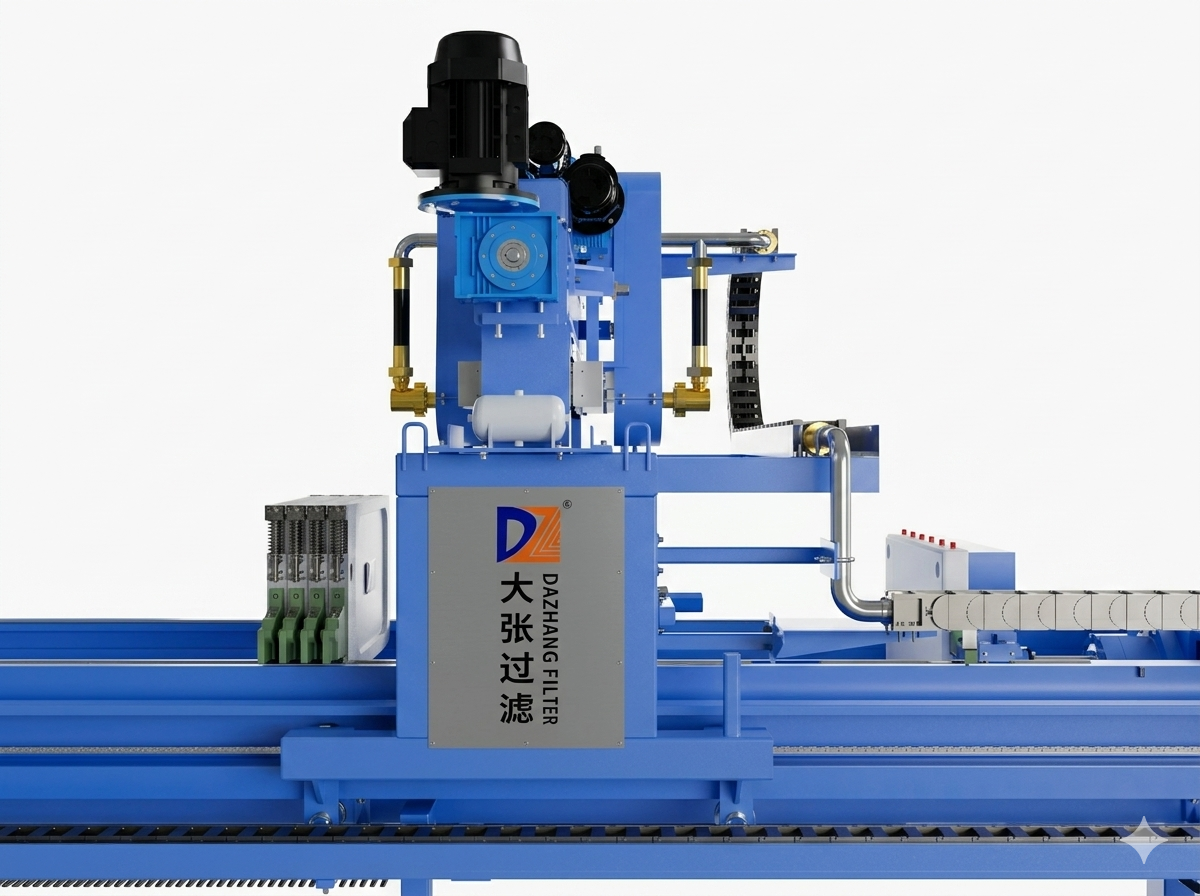

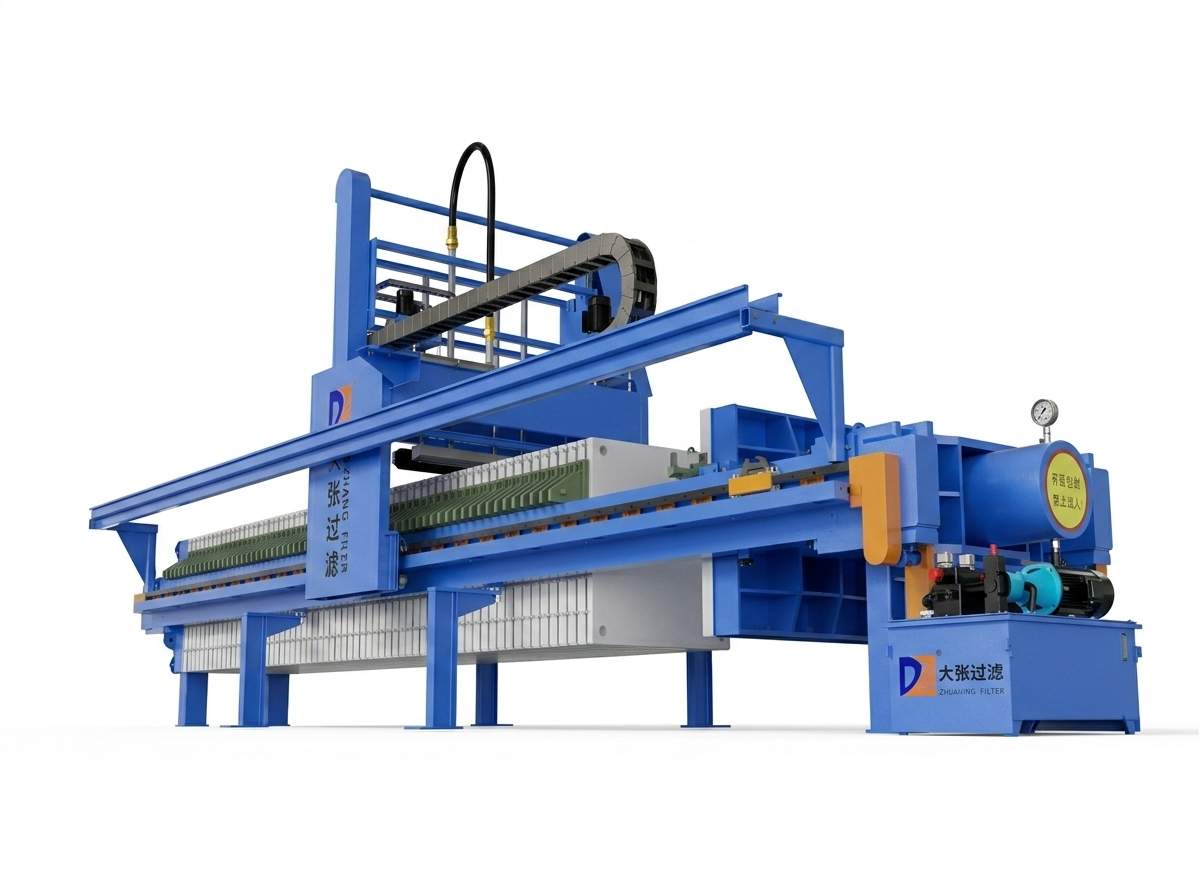

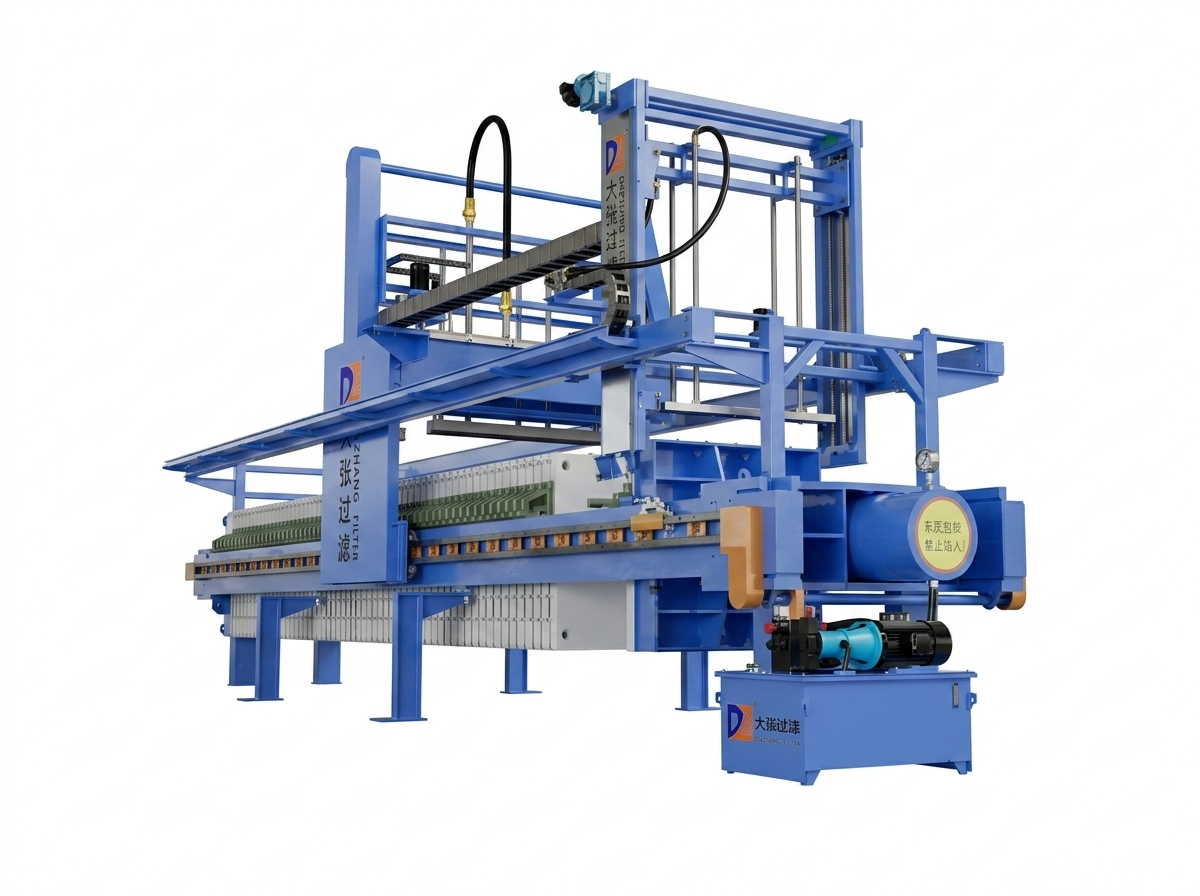

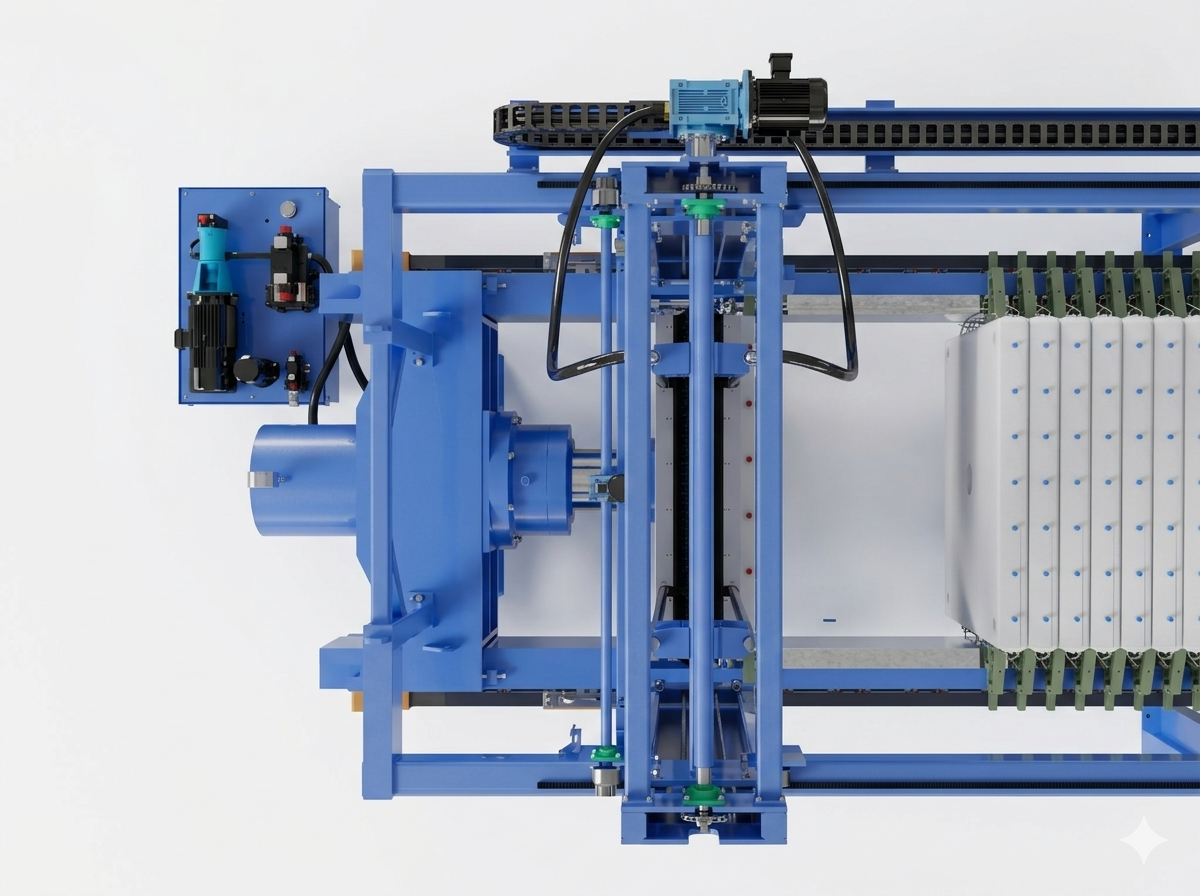

The auto filter press:Fully auto control system; Easy operation; High work efficiency; It contains automatic cloth washing system, which is designed for the customers who have requirements on cloth washing work, this function save labor cost and improve the work efficiency highly.
The1)Feeding pressure 0.6-2MPa, Hydraulic compressing, automatic maintaining pressure
The2)Frame made of high-quality Q345 carbon steel with sandblasting processing can be coated with SS304 or 316L for meeting high requirements.
The3)Hydraulic station equipped with famous brand motor, the power voltage can be customized as per customer's different requirements, closing pressure can reach 20-25MPa.
The3)Control system uses Siemens PLC to realize automatic operation includes clamping, feeding, plate opening, plate shaking, cloth cleaning, cake discharging etc.
The4)Schneider Electric components can work for many years. Stainless steel track for plate shifter is wearable, it has long service life.
The5)Customized model, capacity and products are available
Click to expand to view the data
| Model | Filter press | Plate size | Cake thickness | Filter chamber volume | Plate NO | Filtration pressure | Motor power | Weight | Dimensions L*W*H(mm) | Foundation Size(mm) | ||||
| L | B | D | H | |||||||||||
| X_M^AZ30/870−30U_K^B | 30 | 870*870(Or)800*800 | 30 | 460 | 23 | 0.6 | 2.2 | 2680 | 3180*1400*1230 | 2360 | 700 | 1380 | 785 | |
| X_M^AZ40/870−30U_K^B | 40 | 595 | 30 | 3050 | 3570*1400*1230 | 2750 | ||||||||
| X_M^AZ50/870−30U_K^B | 50 | 748 | 38 | 3456 | 4110*1400*1230 | 3290 | ||||||||
| X_M^AZ60/870−30U_K^B | 60 | 902 | 46 | 4003 | 4550*1400*1230 | 3730 | ||||||||
| X_M^AZ70/870−30U_K^B | 70 | 1056 | 54 | 4584 | 4990*1400*1230 | 4170 | ||||||||
| X_M^AZ80/870−30U_K^B | 80 | 1210 | 62 | 5082 | 5430*1400*1230 | 4610 | ||||||||
| X_M^AZ50/870−30U_K^B | 50 | 1000*1000 | 30 | 736 | 28 | ≥0.6 | 4 | 4128 | 4040*1500*1400 | 3120 | 780 | 1480 | 870 | |
| X_M^AZ60/870−30U_K^B | 60 | 889 | 34 | 4636 | 4460*1500*1400 | 3480 | ||||||||
| X_M^AZ70/870−30U_K^B | 70 | 1041 | 40 | 5143 | 4760*1500*1400 | 3840 | ||||||||
| X_M^AZ80/870−30U_K^B | 80 | 1193 | 46 | 5651 | 5120*1500*1400 | 4200 | ||||||||
| X_M^AZ100/870−30U_K^B | 100 | 1475 | 57 | 6628 | 5780*1500*1400 | 4860 | ||||||||
| X_M^AZ120/870−30U_K^B | 120 | 1777 | 69 | 7644 | 6500*1500*1400 | 5580 | ||||||||
| X_M^AZ100/1250−30U_K^B | 100 | 1250*1250 | 30 | 1468 | 36 | ≥0.6 | 4 | 8307 | 5020*1800*1600 | 3970 | 850 | 1740 | 995 | |
| X_M^AZ120/1250−30U_K^B | 120 | 1746 | 43 | 9308 | 5470*1800*1600 | 4430 | ||||||||
| X_M^AZ140/1250−30U_K^B | 140 | 2063 | 51 | 10455 | 5990*1800*1600 | 4950 | ||||||||
| X_M^AZ160/1250−30U_K^B | 160 | 2341 | 58 | 11492 | 6450*1800*1600 | 5400 | ||||||||
| X_M^AZ180/1250−30U_K^B | 180 | 2619 | 65 | 12494 | 6905*1800*1600 | 5860 | ||||||||
| X_M^AZ200/1250−30U_K^B | 200 | 2896 | 72 | 13504 | 7360*1800*1600 | 6310 | ||||||||
| X_M^AZ220/1250−30U_K^B | 220 | 3214 | 80 | 14652 | 7880*1800*1600 | 6830 | ||||||||
| X_M^AZ250/1250−30U_K^B | 250 | 3650 | 91 | 16227 | 8600*1800*1600 | 7550 | ||||||||
| X_M^AZ200/1500−35U_K^B | 200 | 1500*1500 | 35 | 2998 | 49 | ≥0.6 | 7.5 | 20030 | 6400*2200*1900 | 5250 | 1170 | 1990 | 1070 | |
| X_M^AZ250/1500−35U_K^B | 250 | 3594 | 61 | 22978 | 7225*2200*1900 | 6090 | ||||||||
| X_M^AZ300/1500−35U_K^B | 300 | 4347 | 74 | 26026 | 8130*2200*1900 | 6990 | ||||||||
| X_M^AZ350/1500−35U_K^B | 350 | 5043 | 86 | 29220 | 8950*2200*1900 | 7840 | ||||||||
| X_M^AZ400/1500−35U_K^B | 400 | 5796 | 99 | 32574 | 9880*2200*1900 | 8750 | ||||||||
| X_M^AZ450/1500−35U_K^B | 450 | 6492 | 111 | 35586 | 10690*2200*1900 | 9590 | ||||||||
| X_M^AZ500/1500−35U_K^B | 500 | 7187 | 123 | 38606 | 11560*2200*1900 | 10430 | ||||||||
| X_M^AZ600/2000−40U_K^B | 600 | 2000*2000 | 40 | 8926 | 85 | ≥0.6 | 15 | 49000 | 11100*3000*2500 | 9200 | 1660 | 2000 | 1050 | |
| X_M^AZ700/2000−40U_K^B | 700 | 10380 | 99 | 53000 | 12200*3000*2500 | 10300 | ||||||||
| X_M^AZ800/2000−40U_K^B | 800 | 11210 | 107 | 57000 | 13350*3000*2500 | 11450 | ||||||||
| X_M^AZ900/2000−40U_K^B | 900 | 13290 | 127 | 61000 | 14500*3000*2500 | 12600 | ||||||||
| X_M^AZ1000/2000−40U_K^B | 1000 | 14740 | 141 | 65000 | 15600*3000*2500 | 15600 | ||||||||
