1.Long service life;
2.High efficiency;
3.Automatic control, continuous operation
4. Stable polymer dissolving and adding

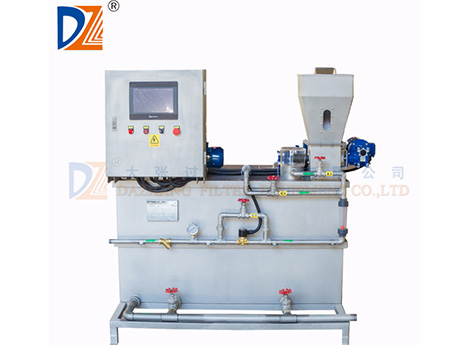

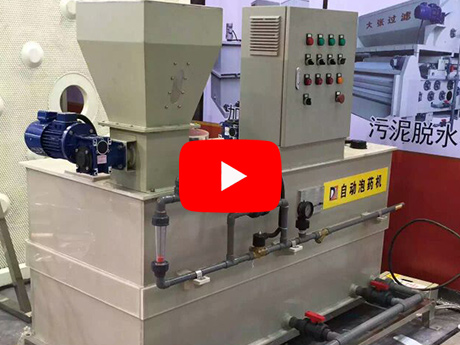

Polymer Dosing System is widely used to dissolve and add various polymers automatically. It is widely used in Flocculant process for municipal for industrial waste water treatment; Flocculant preparation while sludge dewatering; Purification treatment of drinking water; Wastewater treatment in Chemicals.
Polymer dosing system is one of the commonly used polymer feeding machine. It can feed the medicine liquid from the container into wastewater continuously and automatically.
The Polymer powder dosage is accurate and adjustable; It can ensure treatment effect and avoid waste.
Stainless steel structure and high quality components has long service lifeand good corrosion resistance.
It is easy in maintaining and nice in appearance.
Click to expand to view the data
| Model | Tank Qty | Capacity | Powder supply tank volume(L) | Power of feeder(frequency conversion) |
Power of mixing device（kw） | Tank Material | Dimensions（mm） |
Weight(kg) | |||
| Standard | Customized | L | W | H | |||||||
| ZJY-500 | Two-tanks | 500 | 30 | 0.18 | 0.37*2 | sus304 | 316 Q235 PP PVC FRP |
1600 | 1100 | 1500 | 240 |
| ZJY-1000 | Three-tanks | 1000 | 40 | 0.18 | 0.37*3 | 2000 | 1200 | 1600 | 350 | ||
| ZJY-1500 | 1500 | 50 | 0.18 | 0.37*3 | 2300 | 1200 | 1800 | 450 | |||
| ZJY-2000 | 2000 | 50 | 0.18 | 0.37*2 | 2300 | 1500 | 2000 | 500 | |||
| ZJY-2500 | 2500 | 60 | 0.18 | 0.55*3 | 2700 | 1700 | 1900 | 600 | |||
| ZJY-3000 | 3000 | 80 | 0.18 | 0.55*3 | 3300 | 1700 | 1900 | 700 | |||
| ZJY-4000 | 4000 | 100 | 0.37 | 0.75*3 | 3800 | 1800 | 2200 | 900 | |||
| ZJY-5000 | 5000 | 120 | 0.37 | 1.1*3 | 4000 | 1800 | 2200 | 1100 | |||
| ZJY-6000 | 6000 | 140 | 0.37 | 1.5*3 | 4200 | 1900 | 2300 | 1300 | |||
| ZJY-8000 | 8000 | 160 | 0.37 | 1.5*3 | 4500 | 2000 | 2500 | 1500 | |||
| ZJY-10000 | 10000 | 180 | 0.37 | 2.2*3 | 5000 | 2000 | 2700 | 1800 | |||
1000 engineers will always provide service for your project
In 2 hours, contact and give clear solutions
Provide the required information, product, site planning drawings, etc. timely
Slove the problem completely,inlcuding product installation,tech training service,spare parts,on-site maintenance, etc.
