1.Compact structure with small size and weight
2.Simple operation, high efficiency and stable performance
3.Low filtration cost and little running loss,high liquid output
4. Automatic fine filtration
Widely used in: various wines, beverages, sugar industry, condiments and other industries

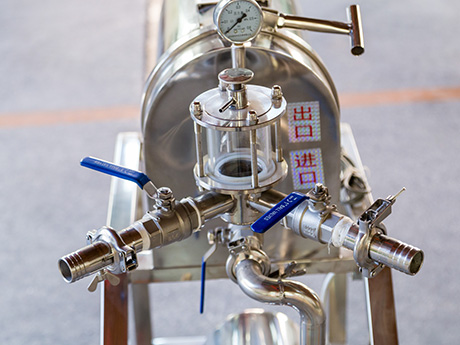

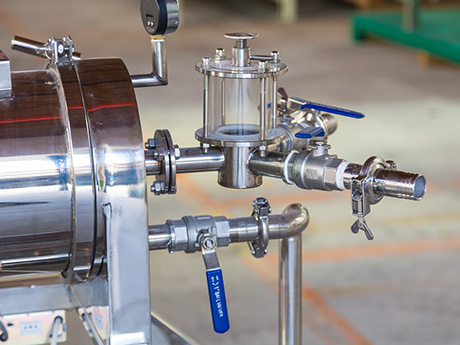

The diatomite filter which using diatomite as filter aid is designed referring to foreign technology about food and beverage filtration equipments. The machine has a large filtration area, wide turbidity distribution area, and a fast flow velocity. It is effective in rice wine, brewing and liquid beverages with strong adhesion. The filtration clarity can reach 99.8%, and it can even filter out colibacillus if the operation is proper.
Click to expand to view the data
| Model | Dimensions(mm) | Filter Area（㎡） | Filter Plate QTY | Valve Diameter | Theoretical Flow (On base of alcohol)(t/h) | （Mpa)Working Pressure | Pump Model |
| DZWK200 | 900×300×400 | 1 | 15 | DN32 | 1-2 | ≤0.3 | YL3-25 |
| DZWK250 | 1100×350×450 | 2 | 20 | 2-3 | YL3-25 | ||
| DZWK330-III | 1600×600×850 | 2.5 | 15 | 2-4 | YL5-25 | ||
| DZWK330-II | 1700×600×750 | 3.4 | 20 | 3-5 | YL5-25 | ||
| DZWK400-I | 1840×680×800 | 5.1 | 20 | 5-8 | YL10-25 | ||
| DZWK400-A | 2350×680×800 | 9.8 | 38 | 9-12 | YL12-25 | ||
| DZWK500-B | 1950×750×850 | 8.9 | 20 | 8-10 | YL10-25 | ||
| DZWK500-A | 2450×750×850 | 15.9 | 38 | 13-15 | YL16-25 | ||

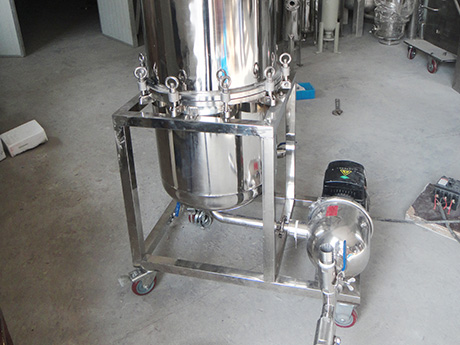

| DZLS-300 | 550×540×1250 | 3.4 | 19 | 3-5 | YL10-25 | ||
| DZLS-400 | 920×560×1550 | 8.9 | 39 | 8-10 | CHL8-40 |
