Introduction

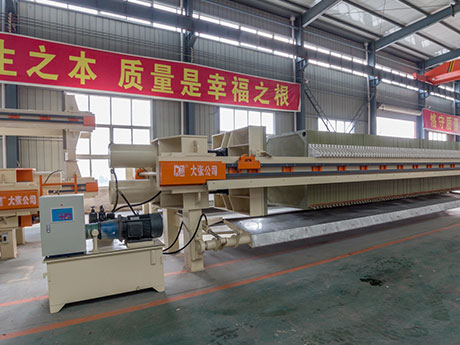

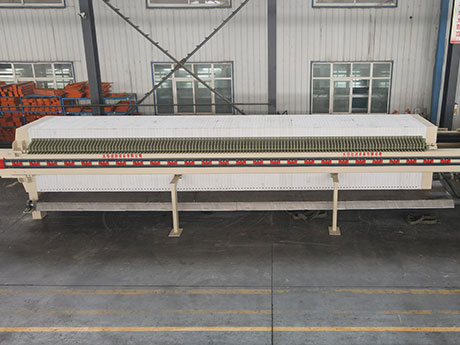

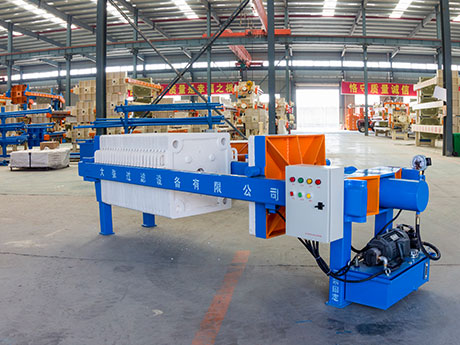

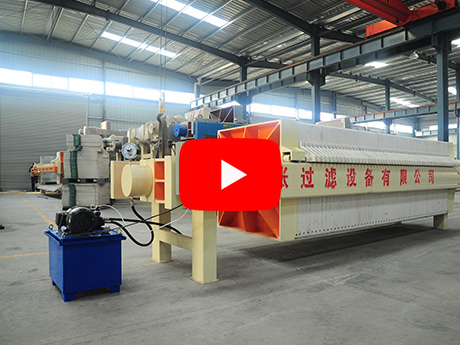

The Chamber filter press is a filtration equipment which widely used for solid-liquid separation.

It consists of a frame, filter plate, hydraulic system, and control system.

1)Frame is made of high-quality Q345 carbon steel with sandblasting processing, it can be coated with SS304 or 316L for meeting high requirements like food grade, corrosion resistance etc.

2)Hydraulic system is equipped with famous brand motor, the power voltage can be customized as per customer's requirement from different countries, the closing pressure can reach 20-25MPa.

3)Control system uses Simens PLC to realize automatic operation includes clamping, feeding, plate opening, plate shaking, cloth cleaning, cake discharging etc.

4)Schneider Electric components can work for many years. Stainless steel track for plate shifter is wearable, it has long service life.

5)Customized model, capacity and products are available

Parameter

Click to expand to view the data

Model		Filter press	Plate size	Cake thickness	Filter chamber volume	Plate NO	Filtration pressure	Motor power	Weight	Dimensions L*W*H(mm)	Foundation Size(mm)
											L	B	D	H
		4	500*500	30	60	9	≥0.6	2.2	860	1950*700*900	1450	390	700	560
		6			91	14			910	2200*700*900	1700
		8			121	19			960	2450*700*900	1950
		10			151	24			1010	2700*700*900	2200
		12			182	29			1060	2950*700*900	2450
		15			225	36			1130	3300*700*900	2800
		16			243	39			1160	3450*700*900	2950
		15	700*700	30	226	18	≥0.6	2.2	1725	2640*900*1100	1972	560	910	700
		20			297	24			1993	2940*900*1100	2272
		30			452	37			2360	3590*900*1100	2922
		40			595	49			2788	4300*900*1100	3622
		30	800*800	30	460	28		2.2	2170	3700*1200*1200	2880	600	900	780
		40			595	38			2450	4300*1200*1200	3480
		50			749	47			2700	4840*1200*1200	4020
		60			802	57	≥0.6		2980	5440*1200*1200	4620
		70			1056	67			3250	6040*1200*1200	5220
		30	870*870	30	460	23		2.2	2580	3330*1400*1300	2360	700	1270	785
		40			595	30			2925	3420*1400*1300	2750
		50			748	38			3318	4260*1400*1300	3290
		60			902	46			3712	4700*1400*1300	3730
		70			1056	54			4106	5140*1400*1300	4170
		80			1210	62			4561	5580*1400*1300	4610
