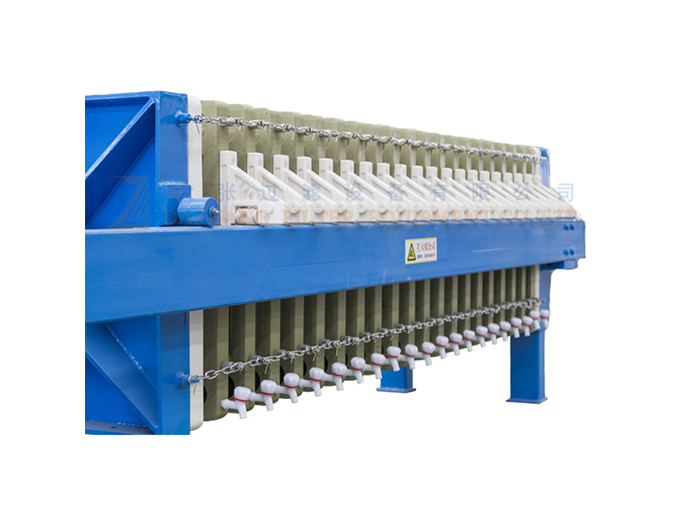

Quick Open Filter Press

Advantages:

1. Easy to operate, labor saving;
2. Short filtration cycle and high efficiency
3. Simple operation, Wide application

Applications:

Slurry dewatering for wastewater treatment, Foodstuff, Chemicals, Mining, Medicine, Ceramic slurry, etc

Leave Message Send Email

Introduction

Quick opening filter press mainly includes 2 kinds: quick opening chamber filter press and quick opening membrane filter press. During the operation, the filter plates can be pulled apart once a time, which will shorten the running time of the whole process. It also has the advantages of simple & convenient operation, high efficiency, low operation cost. It has three types: 450, 630 and 870 series. The filter area ranges from 4m2 to 20m2. According to the different working processes and filtration requirements, we can offer a belt conveyor, shaking system, water tank, and other supporting devices.
1)Feeding pressure 0.6-2MPa, Hydraulic compressing, automatic maintaining pressure
2)Frame made of high-quality Q345 carbon steel with sandblasting processing can be coated with SS304 or 316L for meeting high requirements.

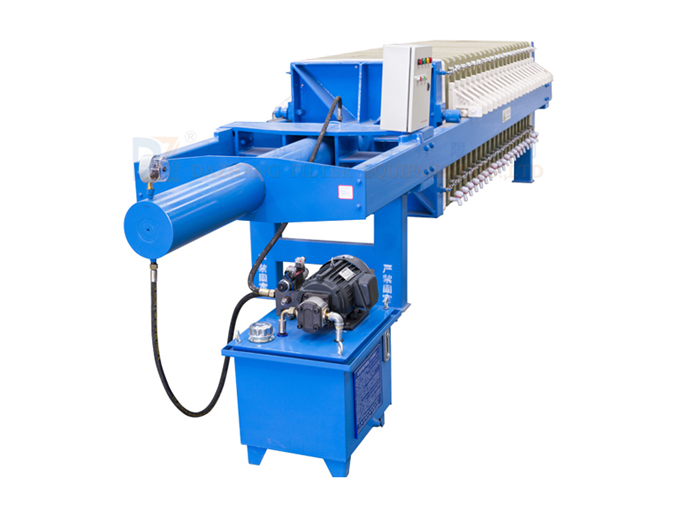

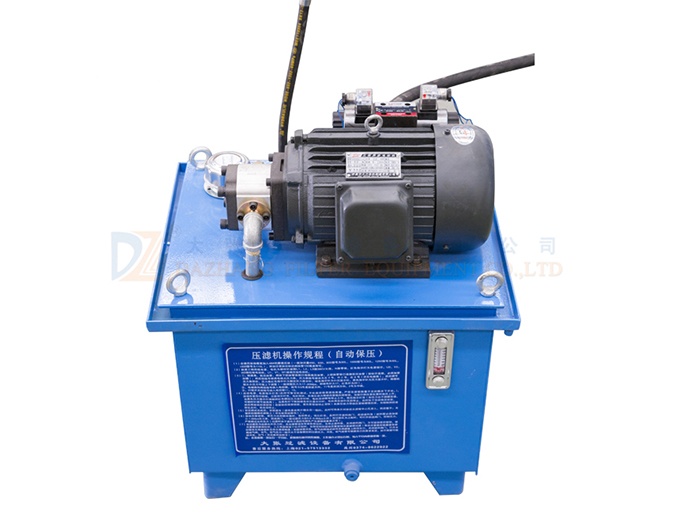

3)Hydraulic system is equipped with famous brand motor, the power voltage can be customized as per customer's requirement from different countries, the closing pressure can reach 20-25MPa.
4)Control system uses Siemens PLC to realize automatic operation includes clamping, feeding, plate opening, plate shaking etc.
5)Schneider Electric components can work for many years.
6)Customized model, capacity and products are available

Parameter

Click to expand to view the data

 Model Filter press(m2)  Plate size(mm)   Cake thickness(mm)   Filter chamber volume(L)  Plate NO(pcs)   Filtration pressure(Mpa)   Motor power(Kw)   Weight(Kg)   Dimensions L*W*H(mm)  Foundation Size(mm)
L B D H
X_M^AY 4 500*500 30 60 9 0.6 2.2 890 2230*800*900 1550 390 700 560
X_M^AY 5 79 12 920 2630*800*900 1800
X_M^AY 6 700*700 30 95 7 0.6 2.2 1450 2200*1050*1150 1490 560 1110 700
X_M^AY 8 119 9 1500 2400*1050*1150 1640
X_M^AY 10 154 12 1610 2540*1050*1150 1890
X_M^AY 12 178 14 1720 3130*1050*1150 2140
X_M^AY 15 226 18 1880 3550*1050*1150 2490
X_M^AY 10 870*870 30 154 7 0.6 2.2 1940 2720*1270*1300 1580 700 1380 785
X_M^AY 20 307 12 2230 3500*1270*1300 2430
X_M^AY 18 1000*1000 30 270 10 0.6 4 1850 3470*1400*1400 2320 780 1480 1000
X_M^AY 35 525 20 2540 5470*1400*1400 3620
X_M^AY 28 1250*1250 30 525 10 0.6 4 3600 4110*1770*1600 3220 850 1740 1250
X_M^AY 55 833 20 5000 6510*1770*1600 4320

If you need our products or have any questions, please leave a message and we will get back to you as soon as possible. Leave Message Online

Service

1000 engineers will always provide service for your project

  • Pre-sales Service

    In 2 hours, contact and give clear solutions

  • Sales Service

    Provide the required information, product, site planning drawings, etc. timely

  • After-sales Service

    Slove the problem completely,inlcuding product installation,tech training service,spare parts,on-site maintenance, etc.

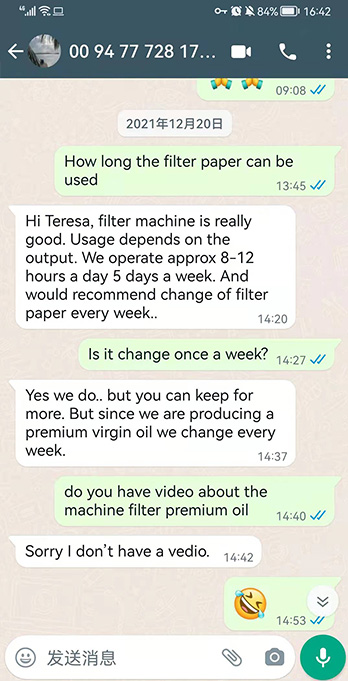

Customer Reviews
